🧩 Choosing the Right Motor Coupler for Your CNC: Stainless Steel vs Spider Style
Your CNC’s motor couplers are a small but critical component in your machine’s motion system. At PwnCNC, we offer and recommend different coupler types depending on your use case — specifically, stainless steel couplers and spider-style (aluminum + red plastic) couplers.
This article breaks down what they are, how they differ, and when to use each type.
🔩 Option 1: Stainless Steel Motor Couplers
These are rigid or helical-type couplers machined from a solid block of stainless steel.
💡 Features:
-
High precision, zero backlash
-
Strong and corrosion-resistant
-
Excellent torsional stiffness
-
Minimal motion dampening
✅ Best for:
-
Z-axis applications where absolute precision is critical
-
Closed-loop stepper systems where tight positional control is enforced
-
Machines with perfect motor-to-screw alignment
⚠️ Considerations:
-
Rigid couplers do not absorb vibration — all shock is transferred directly
-
Lower misalignment tolerance than spider-style couplers
-
Slightly more expensive due to material and manufacturing

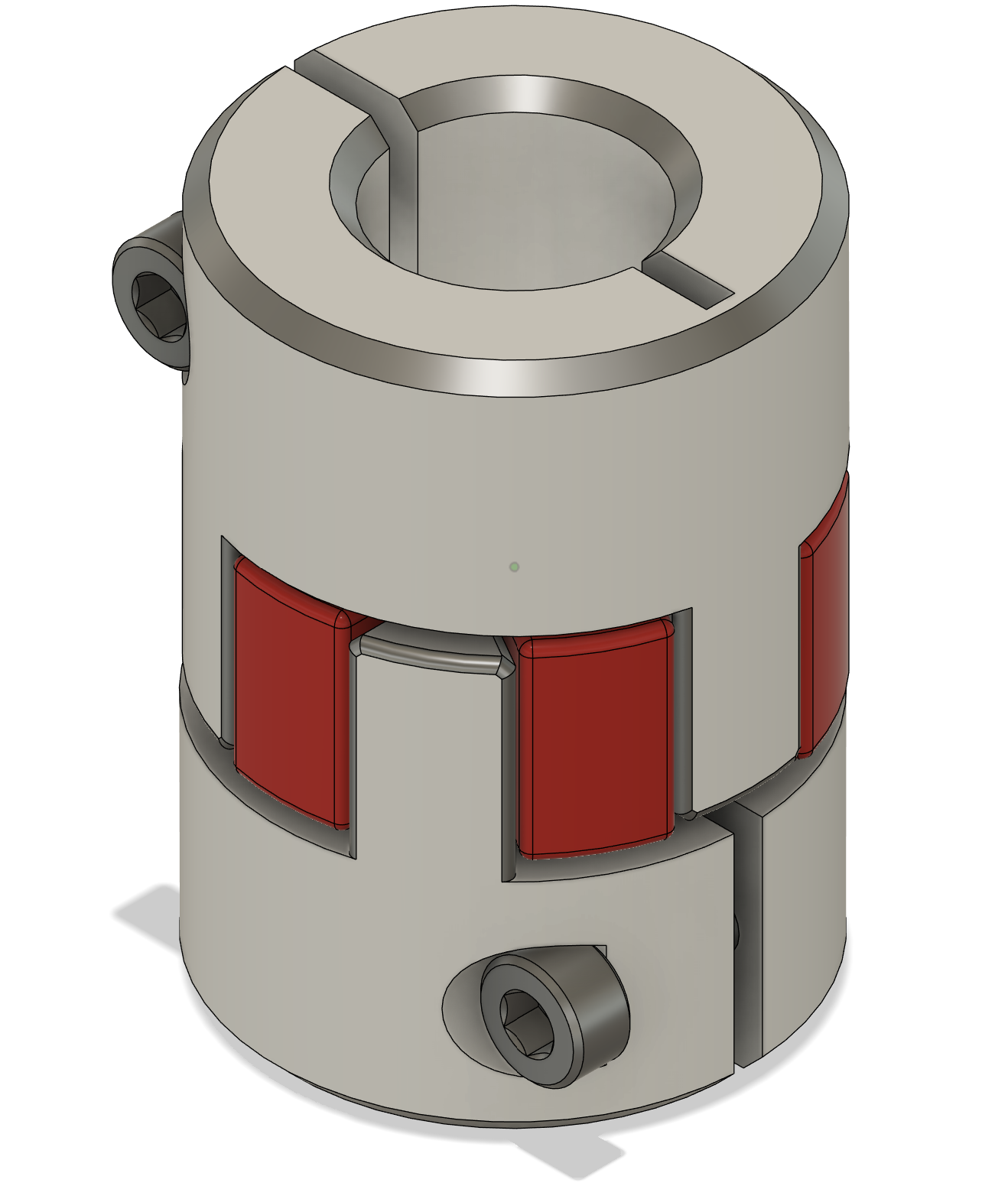

🧱 Option 2: Aluminum + Red Plastic (Spider) Couplers
Commonly called jaw couplers, these feature two aluminum hubs and a flexible red insert (the "spider") between them.
💡 Features:
-
Flexible and forgiving for minor misalignment
-
Vibration dampening reduces motor noise and wear
-
Replaceable spider allows for simple maintenance
-
More affordable and common in hobby CNC setups
✅ Best for:
-
X and Y axes, especially where light to moderate backlash is acceptable
-
Open-loop systems where vibration absorption is helpful
-
CNC users who want simple installation and alignment forgiveness
⚠️ Considerations:
-
Not as rigid as stainless couplers — minor backlash can develop over time
-
Spider insert can wear out and should be replaced periodically
-
Not ideal for high-torque or high-load scenarios
🆚 Side-by-Side Comparison
| Feature | Stainless Steel Coupler | Spider Coupler (Aluminum + Red Insert) |
|---|---|---|
| Torsional Rigidity | High | Moderate |
| Backlash | None | Low to Moderate (increases with wear) |
| Misalignment Tolerance | Low | Moderate |
| Vibration Damping | None | Good |
| Durability | High | Moderate (spider is wear item) |
| Cost | Higher | Lower |
| Ideal Axis | Z | X, Y |
🧠 Our Recommendation
For most PwnCNC machines:
-
Use stainless steel couplers for the Z-axis, where accuracy and rigidity matter most — especially with closed-loop steppers or heavy spindles.
-
Use spider-style couplers for X and Y axes, where slight misalignments and vibration absorption are beneficial.
You can mix and match depending on your machine configuration and intended use. We may soon offer both styles so stay tuned.
🔧 Maintenance Tip
If you're using spider couplers, inspect the red spider insert every 6–12 months depending on usage. Replace if you notice:
-
Excessive play
-
Cracking or deformation
-
Clicking noises during axis movement
Still not sure which one to use? Contact our support team and we’ll help match the right coupler to your CNC system.
